Cable Kits for Connectivity Options

IONOTRONICS extensively uses the Hirose DF11 series connectors. These allow for robust cabling with keyed connections as well as mixing various 4-pin, 12-pin and 16-pin connectors. The 2mm pitch allows us to develop small form factor boards with the benefit of rapid unambiguous cabling from board to board.

We also supply cables to connect boards with DF-11 connectors to 25 mil 0.1" posts. For example, for connecting to Ardiono and Rasberry Pie Boards as well as to breakout boards with 0.1" headers.

For rapid prototyping see the Specialized Cables Table

For information on DF-11 Headers and Crimped Wires Including Digikey Part Numbers see here.

The following Table is a guide to Cable Kits provided by IONOTRONICS which will allow for rapid cabling and connection between boards and buses to get your projects on a rapid prototyping foundation.

Cable Kits

Item
Description Part
1
Cable Kit Hirose DF-11 to DF-11 MK-32642
2

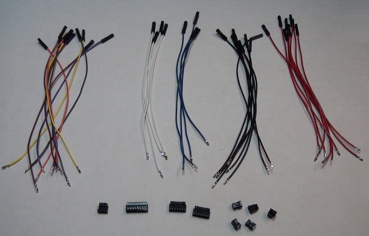

Cable Kit Hirose DF-11 to 25 mil Posts for 0.1" Connections MK-50541
3

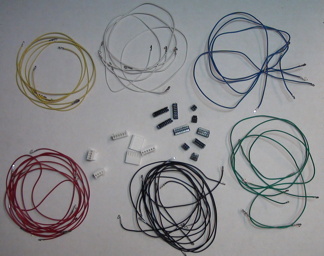

Cable Kit Hirose DF-11 to Molex for 0.1" Molex Connectors MK-31551
4

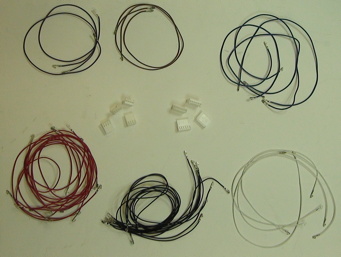

Cable Kit Molex to Molex for 0.1" Molex Connectors MK-92533


Specialized Cables for Rapid Prototyping

Item
Description Part Photo
1

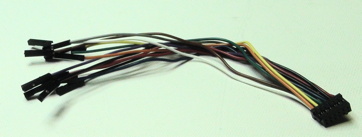

DF-11 12 Pin to 25 mil Post MK-89808
2
DF-11 6-pin to 25 mil Post MK-76660
3

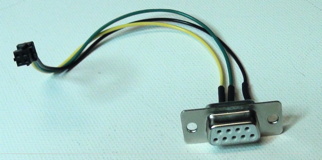

RS-232 to DF-11 4 Pin DTE MK-63701
4

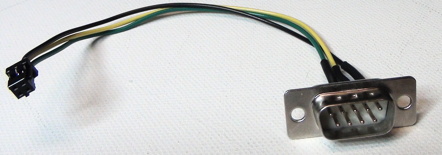

RS-232 to DF-11 4 Pin DCE MK-69447
5

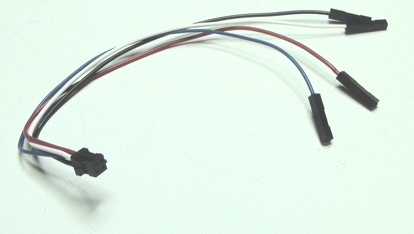

DF-11 4-pin to 25 mil Post I2C Cabling MK-25993
