Datasheet MK-69447

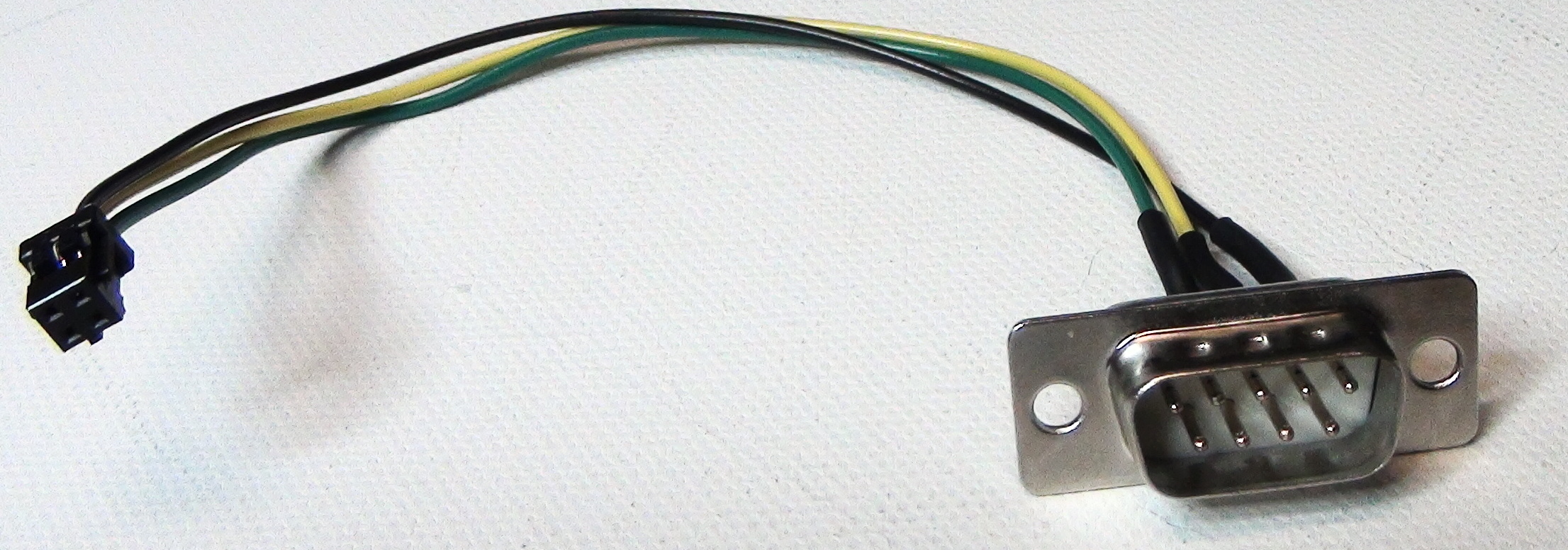

DB-9 DCE (Male) RS-232 to 4 pin DF-11 Cable

Specifications

  • 6 " (15.24 cm) Cable
  • Hirose 4-pin DF-11
  • DB-9 DCE (maile)
  • Color Coded ( Green/Yellow/Black)

Description

This cable is used in many products to provide an interface to RS-232 serial communications. The cable connects at one end to a small 4 pin DF-11 connector and at the other end to a male DCE DB-9 connector. The wires are provided in three colors:

1- Green Tx .

2- Yellow Rx.

3- Black which is ground.

When connected to the Eorapror or the Dual RS-232 Level Converter there is no ambiguity. The 4-pin DF-11 is keyed and the male DCE DB-9 connector connectes to the female DB-9 RS-232 connector from a device.


Schematic
