Cable Kit MK-50541

DF-11 to 25 mil Post with Headers

Specifications

  • DF-11 to 25 mil Post Pre-Crimped Cables 6" Various Colors
  • 4 pin, 12 pin, 16 pin and 6 pin DF-11 Headers
  • Easily create cable assemblies for connecting DF-11 connectors to 0.1" (25 mil post) headers.

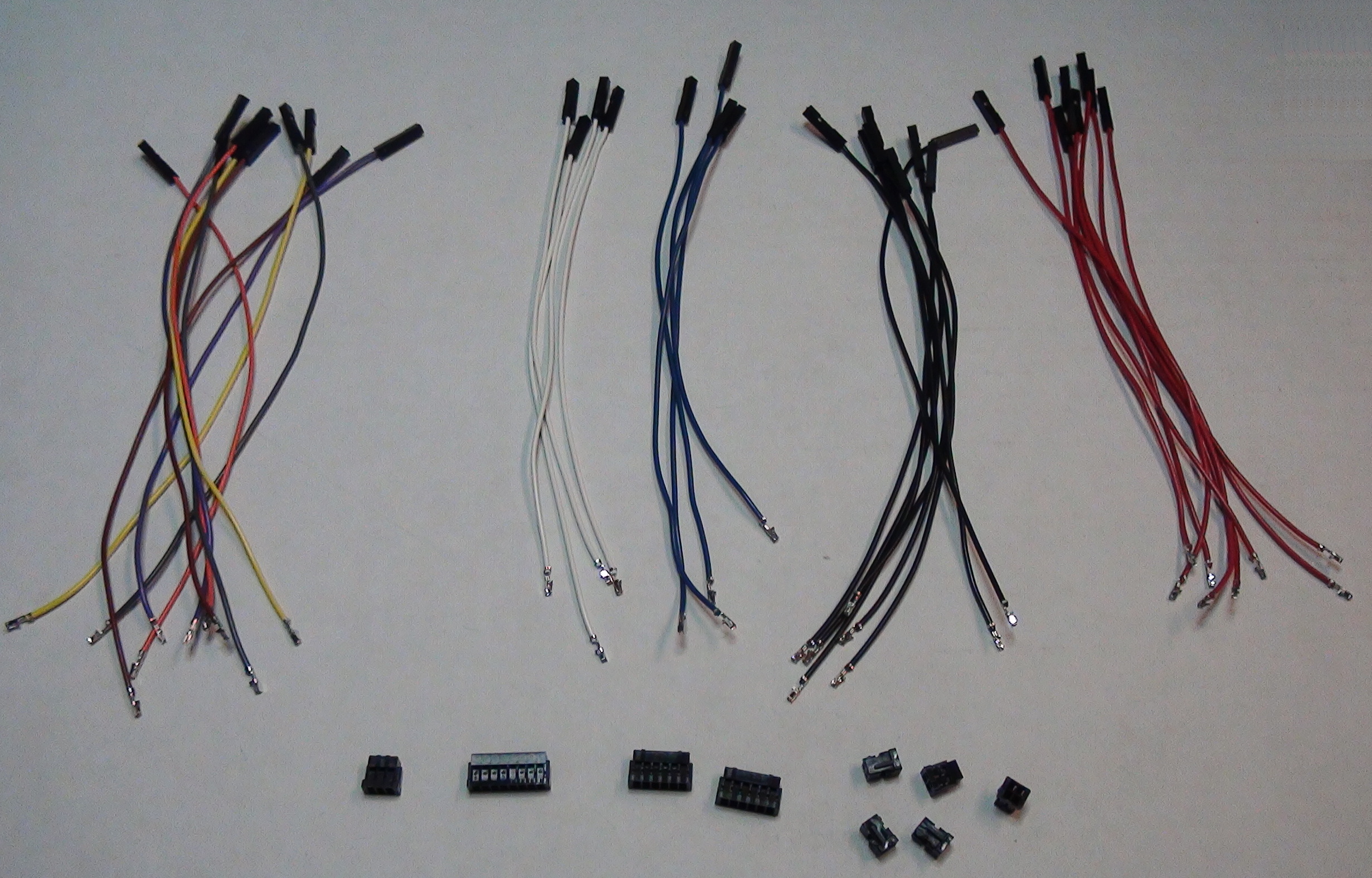

Cable Kit Contents

Description

The Cable Kit contains multiple 6" cables with Hirose DF-11 crimps on one end and 25 mil posts on the other end. Easily create cable assemblies for connecting DF-11 connectors to 0.1" (25 mil post) headers. The Pre-Crimped cables come in different colors. Build cables for I2C, SPI, GPIO signal connectivity. Integrate sensor boards, switches, and relays with controllers and System on a Chip adaptors to build complete systems.


Contents of Cable Kit

Item
Color Type Length
Quantity
1

Red

DF-11 to 25 mil Post 6 " (152.4 mm)
8
2
Black DF-11 to 25 mil Post 6 " (152.4 mm)
8
3
Blue DF-11 to 25 mil Post 6 " (152.4 mm)
4
4
White DF-11 to 25 mil Post 6 " (152.4 mm)
4
5
Green DF-11 to 25 mil Post 6 " (152.4 mm)
2
6
Yellow DF-11 to 25 mil Post 6 " (152.4 mm)
2
7
Violet DF-11 to 25 mil Post 6 " (152.4 mm)
2
8
Orange DF-11 to 25 mil Post 6 " (152.4 mm)
2
9
Gray DF-11 to 25 mil Post 6 " (152.4 mm)
2
10
Brown DF-11 to 25 mil Post 6 " (152.4 mm)
2


Headers Supplied with Kit

Item
Pins
Type
Quantity
Digikey Part
Manufacturer Hirose Part
1
4
Headers Hirose DF11 Female
5
H2019-ND
DF11-4DS-2C
2
12
Headers Hirose DF11 Female
2
H2024-ND
DF11-12DS-2C
3
16
Headers Hirose DF11 Female
1
H2025-ND
DF11-16DS-2C
4
6
Headers Hirose DF11 Female
1
H2021-ND
DF11-6DS-2C
