Datasheet MK-89808

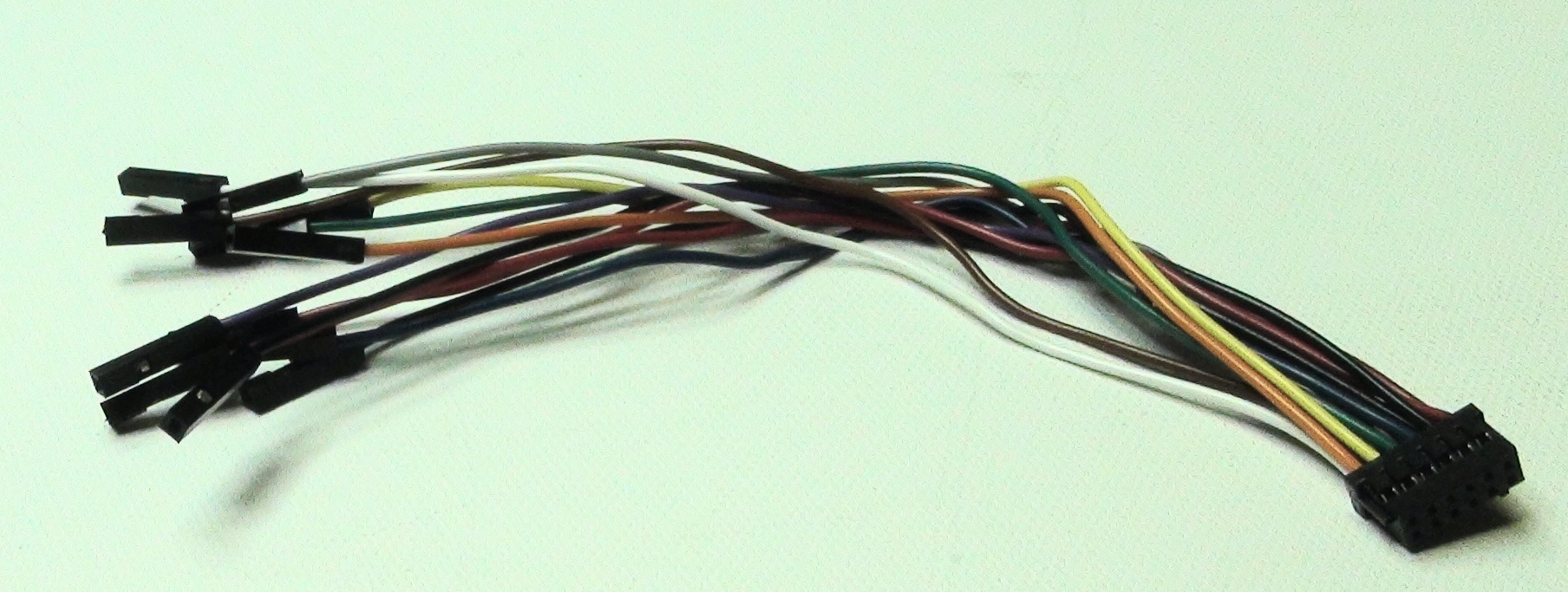

DF-11 12 pin to 25 mil Post for Debounce Switch LEDs

Specifications

  • 6 " (15.24 cm)
  • Converts 12 pin DF-11 to 25 mil Posts for 0.1" Connectors
  • Two VDD and Two Grounds
  • 4 Multi Color Wires for Red, Green, Blue and Yellow LEDS
  • 4 Multi Color Wires for 4 Switches.

Description

Handy cable to connect the MK-55857 Debound Swith and LEDs to 25mil Post 0.1" Connectors. Great for connection Arduino, PIC and other SoCs to the Debounce Switch. Also for connecting to other devices.

Table Wire Color and DF-11 Pin

DF-11 Pin Color
1 White
3 Brown
5 Purple
7 Gray
2 Orange
4 Yellow
6 Green
8 Blue
9 Ground
10 Ground
11 VDD
12 VDD
