Pyroraptor Java Graphical Interface for I2C and SPI Devices via USB

• Free Java Pyroraptor Graphical User Interface (Download)

• Pyroraptor User Guide PDF
• Pyroraptor User Guide Word .doc
• Pyroraptor Datasheet
• Videos

Specifications

• Scanning I2C Devices on the I2C Buss
• Easy Data Transmission and Reading from I2C Devices

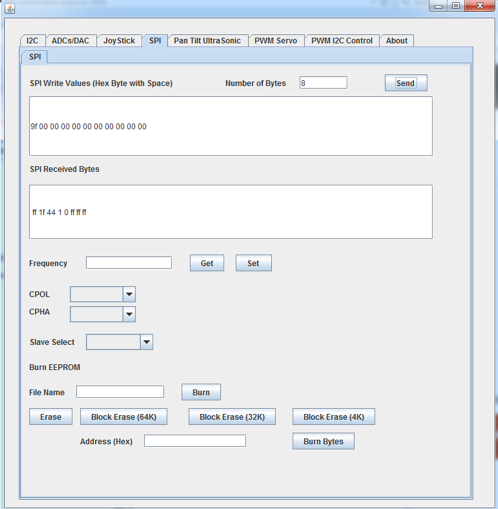

• SPI Graphical Interface to Interact with SPI Devices
• Graphical Interface to I2C Based Servo Motors
• Graphical Interface to I2C Ultrasonic Sensor
• Java Beam Meter Showing 4x Sensor ADC Readings
• AL5 I2C Based Robotic Arm Control
• Multi-Threaded Interval Based Reading of Multiple Sensors
• Tab Based Design
• Open Source Lesser GPL
• Java Native Interface (JNI) Open Source Lesser GPL
• Access to Diolan C API Through JNI Interface

Description

The Java Graphical Interface to the Pyroraptor USB/I2C/SPI interface provides a Tab Based interface for testinfg I2C devices and also programming and interfacing to SPI devices. The Java Applications allows for scanning I2C busses listing devices. Data can be sent to and received from eachh I2C device.

The Java Application through the Tab Interface supports IONOTRONICS I2C Boards for interfacing to multiple sensors (I2C 4xADC and DAC). The application also supports direct graphical support for I2C PWM Motor Control using the IONOTRONICS PIC16F1825 board.

Support is also provided for the control of an AL5 I2c based Arm using the I2C PWM controllers. See video here.

The Java Application interfaces with the Pyroraptor USB/I2C/SPI bridge using a Java Native Interface (JNI) to the Diloan C API. See www.diolan.com for the Diolan C API. The Pyroraptor uses the Diolan Firmwarer for the USB/I2C/SPI bridge.
