Datasheet MK-34765

• Check Price and Stock
• Add to Cart

• User Guide PDF
• User Guide Word .doc
• Java Pyroraptor Graphical User Interface

Specifications

• I2C Bus Support 3.3V and 5V
• 4 Channel 8 bit ADC with 4 pin Hirose Connectors
• 8 bit DAC
• I2C Address Selectable with Switches
• All Switch Based Configuration ( no jumpers required)

Description

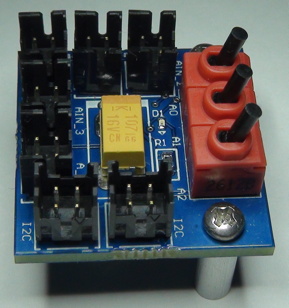

I2C 4 channel ADC with DAC. Based on the NXP PCF8591. See the User Guide for details. This device provides for I2C based access to analog signals. For example from Potentiometers for Robotic Arm joint control. You can also interface analog 3-Axis accelereomers through an I2C bus.

The Pyroraptor USB/I2C-SPI bridge and the Pyroraptor Java Graphical Interface fully support the MK-34765. For example Java Bean Meters show all four channels simultaneously.
