Datasheet MK-60689

• Check Price and Stock
• Add to Cart

• User Guide PDF
• User Guide Word .doc
• Eororaptor
• PIC32 Adaptor
• PIC16F1947 Adaptor

Specifications

• IEEE 802.11bgn
• WiFi to Serial
• Plugs into WiFi Adaptor for 40 Pin SAMTEC to Eoraptor
• Reset and Reload Switches
• Power on Reset
• Supports Status LEDs (Ready, Associated)

Description

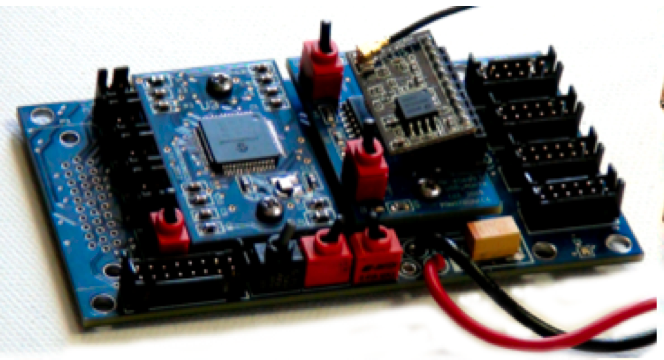

The MK-60689 adaptor support the USR WiFi232-T WiFi device and provides systems built on the Eoraptor Platform the capability to be networked through a wireless TCP/IP network. Java applications on Workstations can communicated with the System on a Chip(SoC) on the Eoraptor platform through the SoC’s serial port and the WiFi Module (MK-60689). The MK-60689 provides a direct TCP/IP socket to the serial port. Using Telnet one can send commands directly to the SoC and receive results. Java and C/C++ applications can communicate with the SoC through TCP/IP Sockets. The MK-60689 can be attached to the Eoraptor. A Blue LED that shows the WiFi status in this case association with the Access Point (AP). We should note that the MK-60689 (with the USR WiFi232-T) supports a multi-threaded server. That is multiple simultaneous TCP/IP sockets are supported. For example, a Java application can control a Robot through the PIC32 SoC while a Telnet session monitors the traffic and can also send commands.
