Datasheet MK-53393

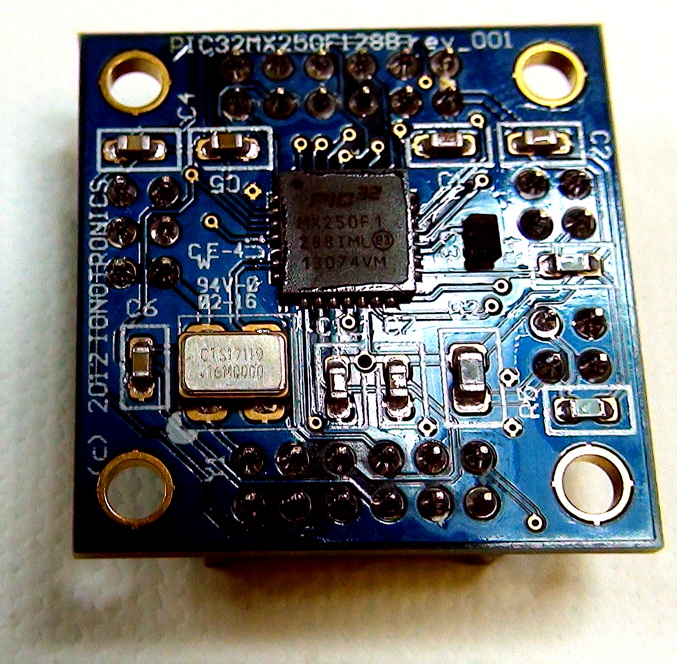

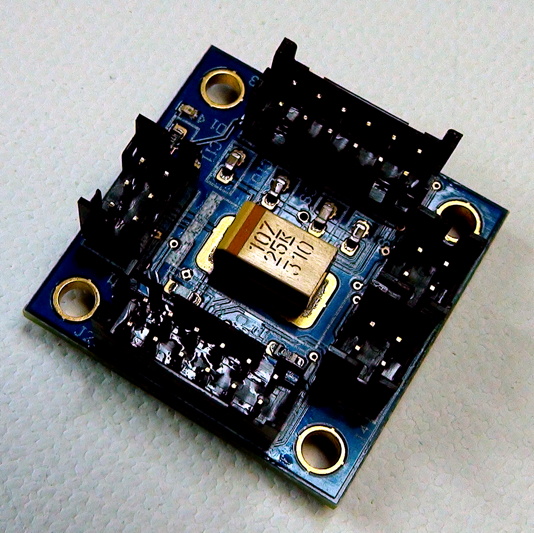

PIC32MX250F128 Processor Board I2C/UART GPIO ICSP

Specifications

  • PIC32MX250F128 Based
  • 40 MHz internal PLL generated Clock
  • Multiple GPIO DF11 Series Connectors (20 GPIO)
  • ICSP Support
  • UART Support (Tx and Rx)
  • I2C 4-pin Hirose DF11 Series Connector

Description

Full breakout of the PIC32MX250F128 with Hirose DF11 Series connectors. Support for I2C Bus interconnect. The board fully supports ICSP programming and debug through the PICKit3 or ICD-3.

Applications include I2C GPIO Expander as well as I2C to UART bridge.
