Datasheet MK-60555

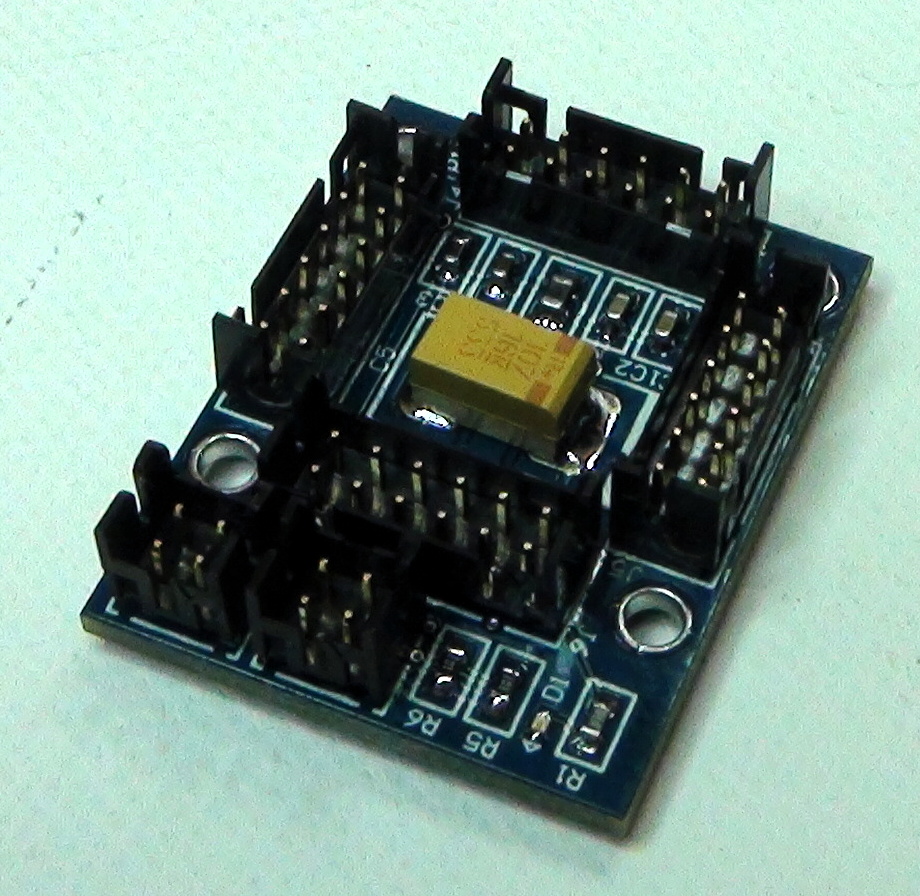

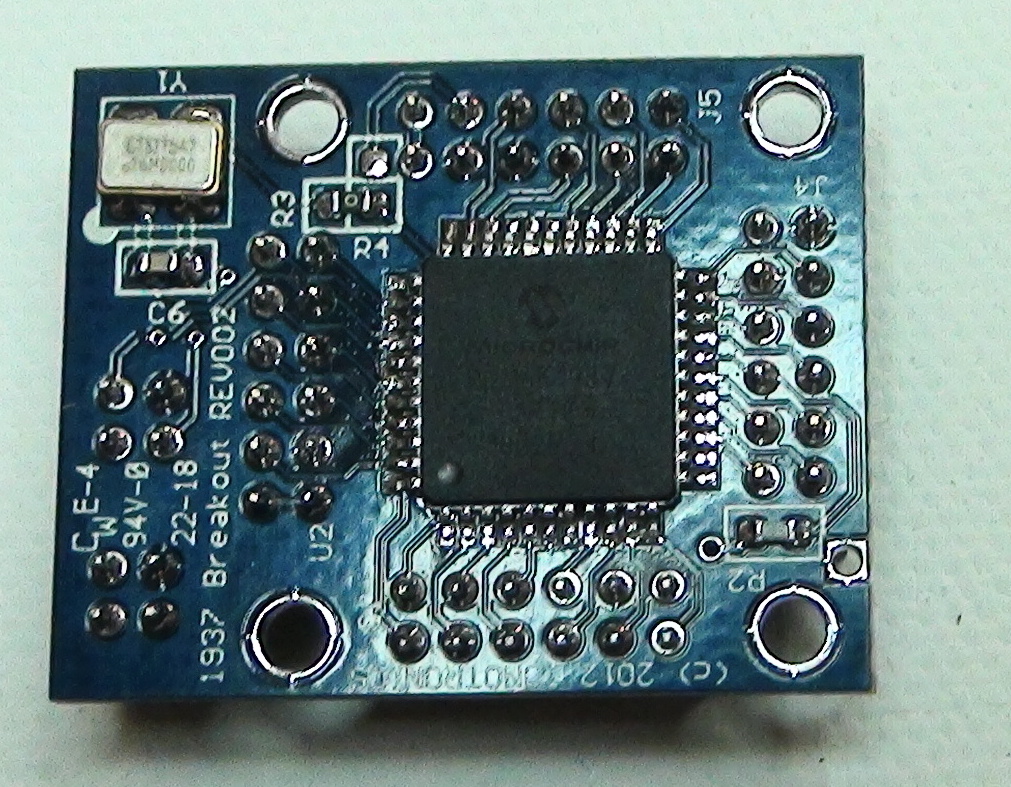

PIC16F1937 Small Form Factor System on a Chip (SoC) Breakout Board

Specifications

  • PIC16F1937 Based
  • 16 MHz Clock
  • Multiple GPIO (36)
  • SPI Master /Slave
  • ICSP Support
  • UART Support (Rx and Tx)
  • Two I2C 4-pin Hirose Connectors

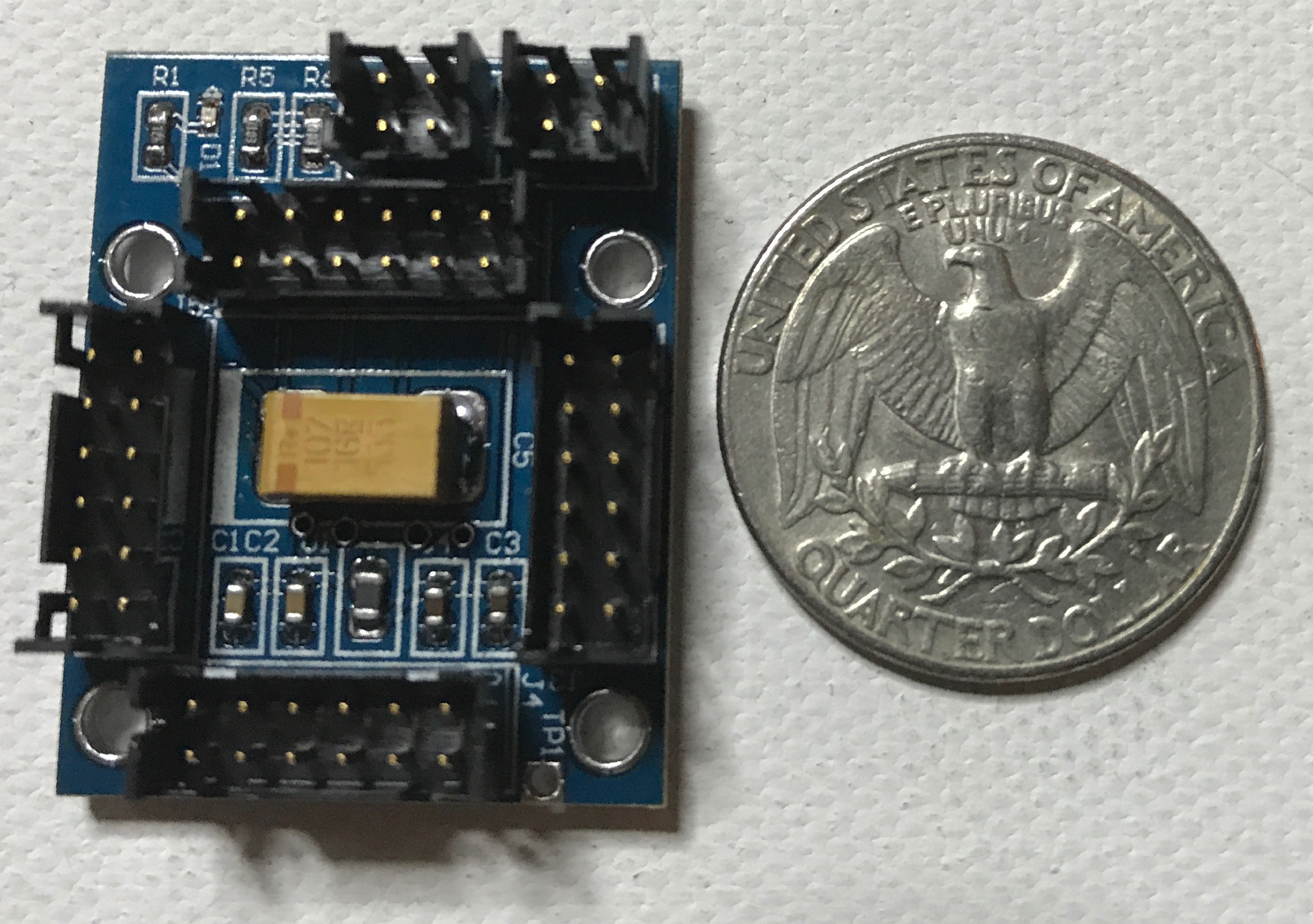

  • 1.250 x 1.000 Inches ( 31.75 mm x 25.4 mm)

Description

Full breakout of the PIC15F1937 with Hirose DF11 Series connectors. Support for I2C Bus interconnect. The board fully supports ICSP programming and debug through the PICKit3 or ICD-3. Also the device supports programming using CCS IDE and the ICD-U64 programmer.

Applications :

1-I2C GPIO Expander

2- I2C to UART bridge.

3- PWM 50 Hz 1500 uSec Servo Control

4- PWM DC Motor Control

5- RPM Measurement using Optical Encoders for Motors

6- Text to Morse Code (dot/dash single GPIO).

7- SPI Master to Read and Write to SPI EEPROM (MK-78171)
