Datasheet MK-55857

Debounce Switches and Color LEDS

Specifications

  • 4 Debounces Switches with Switch Status LEDS
  • 4 LEDS (Red, Green,Yellow, Blue)

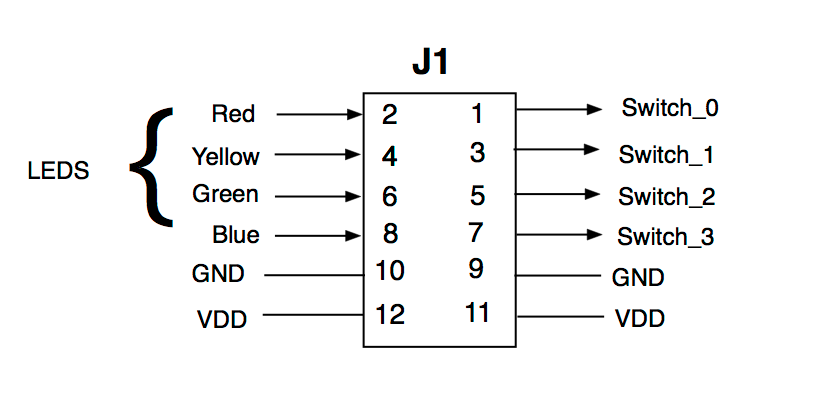

  • 12 pin Hirose Connector (4 input/4 Output Two GND Two VDD 3.3V or 5V)
  • 3.3V or 5V Operation
  • The board is 2.54mm x 2.54 mm (1"x1")

Description

The 4 Debounce Switches provide for reliable switch input to electronic systems. Each switch has a status LED (green) showing switch position (logic state). The board has 4 LEDs (Red, Green, Yellow and Blue). Connection is through a 12 pin Hirose connector. There are 4 inputs and 4 outputs, two VDD (3.3V or 5V) and two Grounds. Power is supplied through the 12 pin Hirose DF-11 connector. The additional ground and VDD are convenient for providing power to other devices.


MK-55856 Debounce Switch and Color LEDs

Debounce Switch with Cable to Connect to 25 mil Pots for 0.1" Connectors.
