Datasheet MK-82075

PIC16F1937 Small Form Factor System on a Chip (SoC)

Specifications

  • PIC16F1937 Based
  • 16 MHz Clock
  • Multiple GPIO (32)
  • ICSP Support
  • UART Support (Rx and Tx)
  • I2C 4-pin Hirose

Description

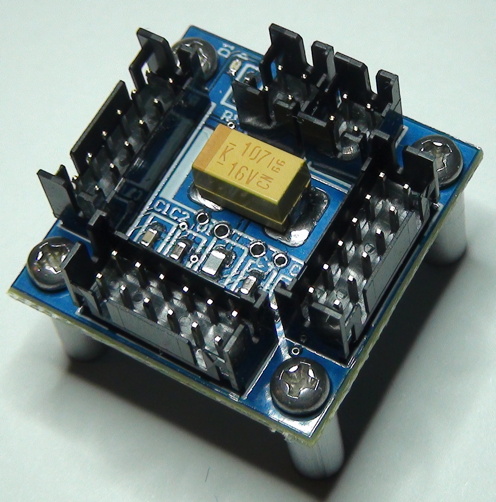

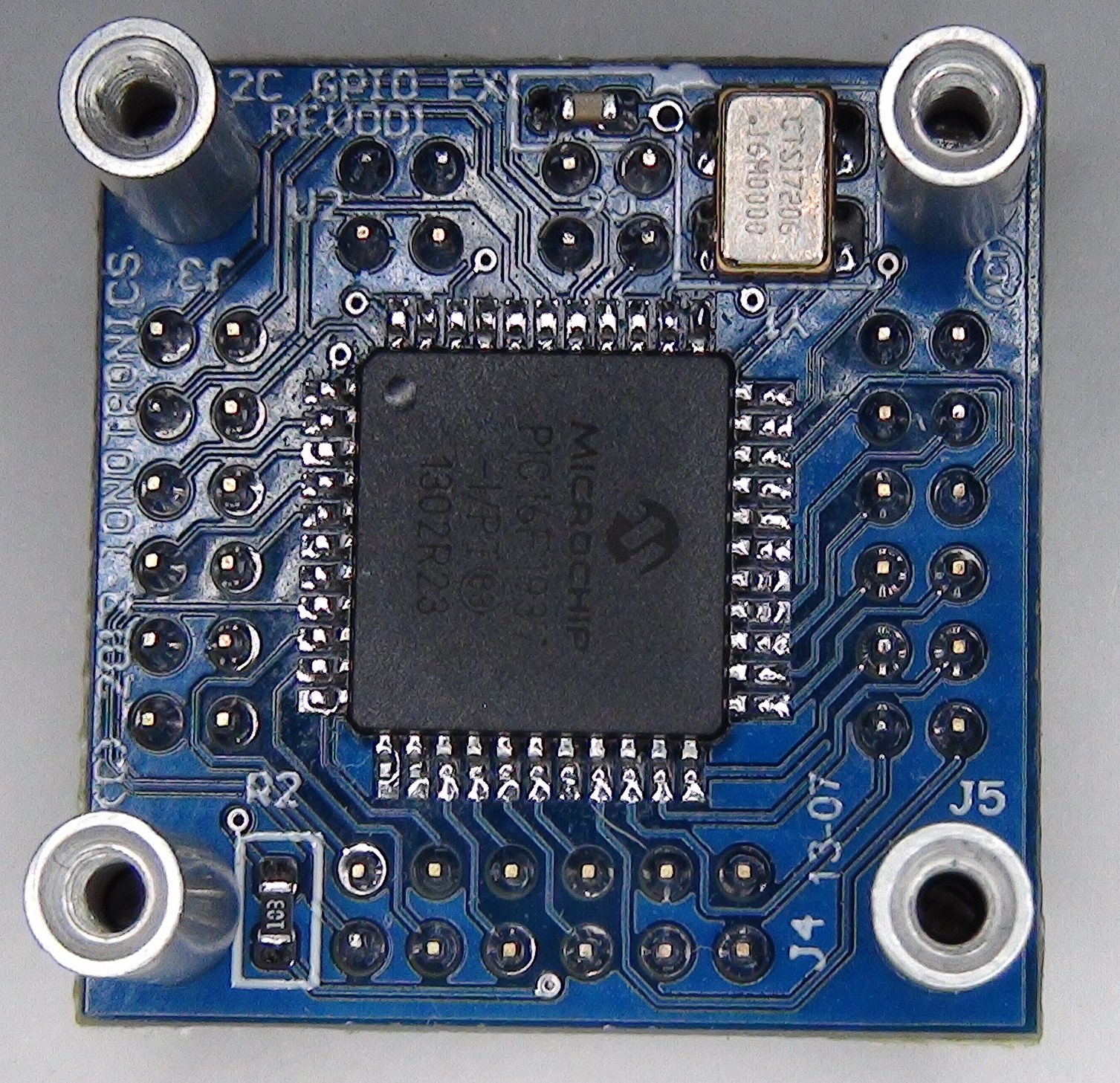

Full breakout of the PIC15F1937 with Hirose DF11 Series connectors. Support for I2C Bus interconnect. The board fully supports ICSP programming and debug through the PICKit3 or ICD-3. Also the device supports programming using CCS IDE and the ICD-U64 programmer.



Applications include I2C GPIO Expander as well as I2C to UART bridge.
