Datasheet MK-91648

Dual DPDT Relay GPIO

Specifications

  • 3.3V Operation
  • Dual DPDT Relay
  • Terminal Connections for Each Relay
  • 6-pin Hirose Connection for GPIO signal and Power
  • Two GPIO Drivcen LEDs

Description

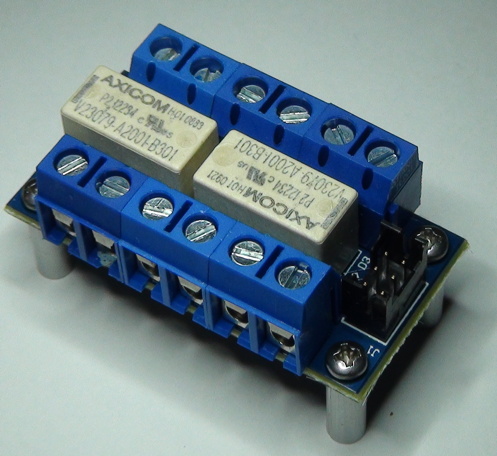

The MK-91648 supports two DPDT relays on a single board. The Relays are driven using GPIO signals. Two LEDs are also provided.

A 6 pin DF11 Series Hirose connector is provided for connecting the GPIO signals to drive the Relays and the LEDs.

Two terminal strips are provided for all relay terminals.

The device can be interfaced to emedded processors for relay control.
